What is GPS?
The Global Positioning System (GPS) comes from the United States and is one of the Global Navigation Satellite Systems (GNSS). It provides the location and information to GPS receivers for users to position themselves. TECHDesign has once introduced all the Global Navigation Satellite Systems in detail in the article “A Glance of GNSS and Its Future Trend”.
Top 3 Factors That Affect GPS Accuracy
Factors that affect GPS accuracy are categorized into 3 portions, which are the position of satellites, the features of GPS receivers, and the signal effect from surrounding environment.
1. The Position of Satellites

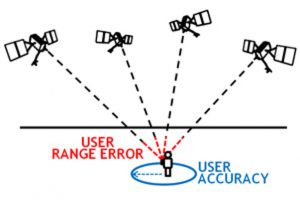

Satellites are the basic elements of positioning. You need at least 3 satellites to position an object, and 1 more satellite to eliminate the errors. But of course, the more satellites are used to calculate the position, the better level of GPS accuracy it will be. The distribution of satellites is important as well; for example, if the signals come from rather evenly distributed satellites, the GPS accuracy will be higher. The value of DOP (Dilution of Precision) can be used to calculate GPS accuracy, and a smaller DOP indicates a more accurate GPS signal.
2. The Features of GPS receivers
The positioning capability of a GPS receiver is one important factor of GPS accuracy determination. How many GNSS systems and in which frequency bands a GPS receiver can support directly affect the performance of the receiver. It is easy to understand that the more GNSS systems and frequency bands a GPS receiver can support, the better the receiver can perform. (You can still find all the frequency bands in the article “A Glance of GNSS and Its Future Trend”.)
Table 1. Frequency bands used by GNSS, (a) Upper L-band; (b) Lower L-band (Source: Wikipedia)
Moreover, the antenna performance, the position algorithm, and the number of satellite tracking channels are essential factors as well. A great antenna can perform high sensitivity; for instance, capable of receiving a signal down to -160 dBm would be a good receiver already. GPS receivers in the market all have enough tracking channels to trace multiple satellites and ensure a certain GPS accuracy.
3. The Signal Effect from Surrounding Environment

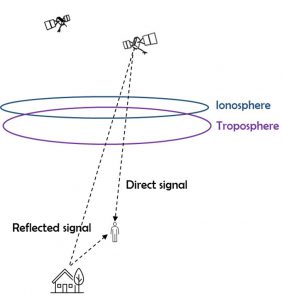

Since the signals from satellites to GPS receivers need to travel a long way, the propagation environment affects the signal strength and positioning correctness a lot. The ionosphere, the troposphere, signal blockage and reflection are all elements that cause errors to occur. The ionosphere, which locates between the thermosphere and the exosphere, will slow down the velocity of GPS signals. The troposphere, which is the lowest layer of Earth’s atmosphere, can sometimes cause radio reflections.

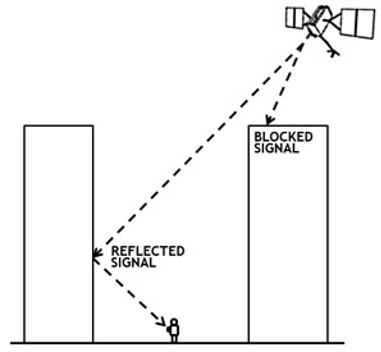

Down to the ground, buildings, walls, trees, highways, and all other obstacles can block or reflect the GPS signals, then create positioning errors or delays. Hence, the surrounding environment can degrade the GPS accuracy in a large portion.
